Pneumatic Piston Vibrators in Mumbai

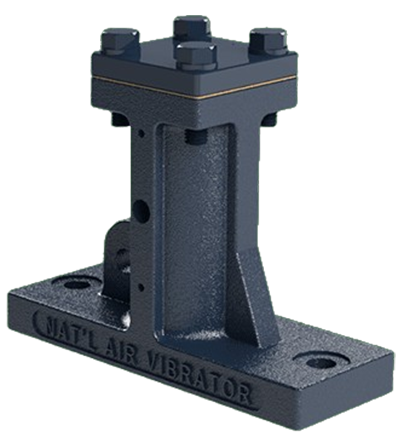

Pneumatic Piston Vibrators in Mumbai are helpful instruments which will help you transport the jammed or settled material from the hopper, bin, chute, pipe and other devices. Such vibrators are powered by compressed air and generate high vibration. Air moves the piston inside the vibrator and generates vibration at the connected surfaces. The vibration makes the material transportation smoother. ACE Flow Konzepts Pvt Ltd provides Pneumatic Piston Vibrators for various purposes. Such vibrators can be helpful for powder, grains, cement, sand, and other dry materials. The vibrators can be used in various plants where material transportation is needed.
Pneumatic Piston Vibrators Manufacturers in Mumbai
ACE Flow Konzepts Pvt Ltd is one of the well-known names among Pneumatic Piston Vibrators manufacturers in Mumbai. The company supplies vibrators that are intended to be used in material handling and plant machinery. The vibrators are therefore good for use in those facilities where air-operated equipment is used. The compact construction of the pneumatic piston vibrator makes its installation possible in various machines.
Pneumatic Piston Vibrators Suppliers in Maharashtra, India
As Pneumatic Piston Vibrators suppliers in Maharashtra, India, ACE Flow Konzepts Pvt Ltd serves industries that require air-operated vibration for their regular production processes. The vibrators can be applied in food plants, chemical plants, cement units, plastic plants, foundries and other production facilities. With the use of a piston vibrator, you will be able to prevent material accumulation on the inner surfaces of the container and outlet. Therefore, material handling will become easier.
Pneumatic Piston Vibrators Exporters in India
Besides, ACE Flow Konzepts Pvt Ltd also acts as Pneumatic Piston Vibrators exporters in India, delivering the vibrators for industrial usage in different markets. The company serves clients who need reliable vibration devices for hoppers, silos, bins, chutes, and other material flow devices. The right vibrator can be chosen depending on material type, machine size and working conditions.
| Model No | Frequency | Air Consumption | Sound Presuure Level | Sizing Criteria | |||||
| Impacting (VPM) | Silent (VPM) | Impacting (SCFM) | Silent (SCFM) | Impacting (dBA) | Silent dBA) | Hopper Capacity(cu. ft) | Wall thickness range (inches) | Weight (lb) | |
| BH-1 | 7250 | 3600 | 3.3 | 3.0 | 86 | 73 | 3 | 1/16”-1/8” | 3 |
| BH-1.25 | 5250 | 3150 | 4.2 | 4.0 | 87 | 67 | 3-7 | 1/16”-1/8” | 3 |
| BH-1.62 | 5100 | 2200 | 7.5 | 7.2 | 102 | 74 | 7-20 | 3/16”-1/4” | ” 18 |
| BH-2 | 4750 | 2100 | 8.3 | 8.3 | 106 | 73 | 20-50 | 3/16”-1/4” | 20 |
| BH-3 | 3400 | 1800 | 11.6 | 11.3 | 96 | 76 | 10-20 ton | 1/4”-3/8” | 50 |
| BH-4 | 2750 | 1400 | 18.2 | 18.2 | 110 | 83 | 50-100 ton | 3/8” – 1/2” | 105 |
